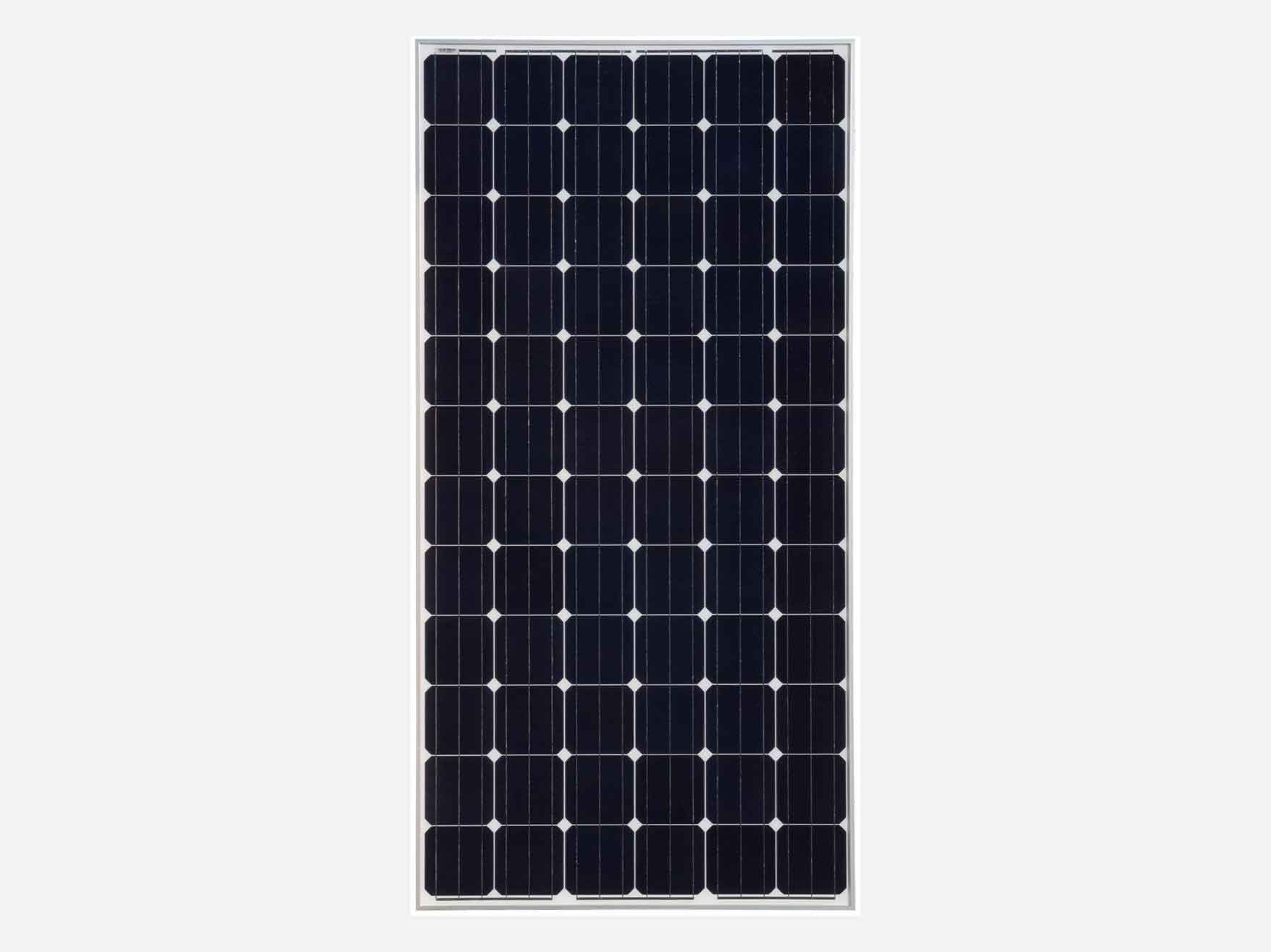

Product Design: Small Size
Solar Cell: 72 Pcs
Minimum quantity: 1 Pcs
Time of delivery: 3-10 days
Packing: wooden cases or cartons
Others: provide customized services according to user needs.
技術參數 ELectrical Data
|
|
標稱功率（W）Power |
340 |
|
工作電壓（V）Vmp |
38.41 | |
|
工作電流（A）Imp |
8.86 | |
|
開路電壓（V）Voc |
44.72 | |
|
短路電流（A）Isc |
9.36 | |
|
電池效率（%）CE |
19.9 | |
|
組件效率（%）ME |
>17.52 | |
|
公差（%）Tolearnce |
±3% |
|
|
NOCT |
47°C +/-2°C |
|
|
短路電流系數 Isc(%)℃ |
+0.04 |
|
開路電壓系數 Voc(%)℃ |
-0.38 | |
|
標稱功率系數 Pm(%)℃ |
-0.47 |
|
|
工作電流系數 Im(%)℃ |
+0.04 |
|
|
工作電壓系數 Vm(%)℃ |
-0.38 |
|
|
電池參數 Solar Cell |
156*156 Mono |
|
電池數量 Number of Cell(pcs) |
6*12 | |
|

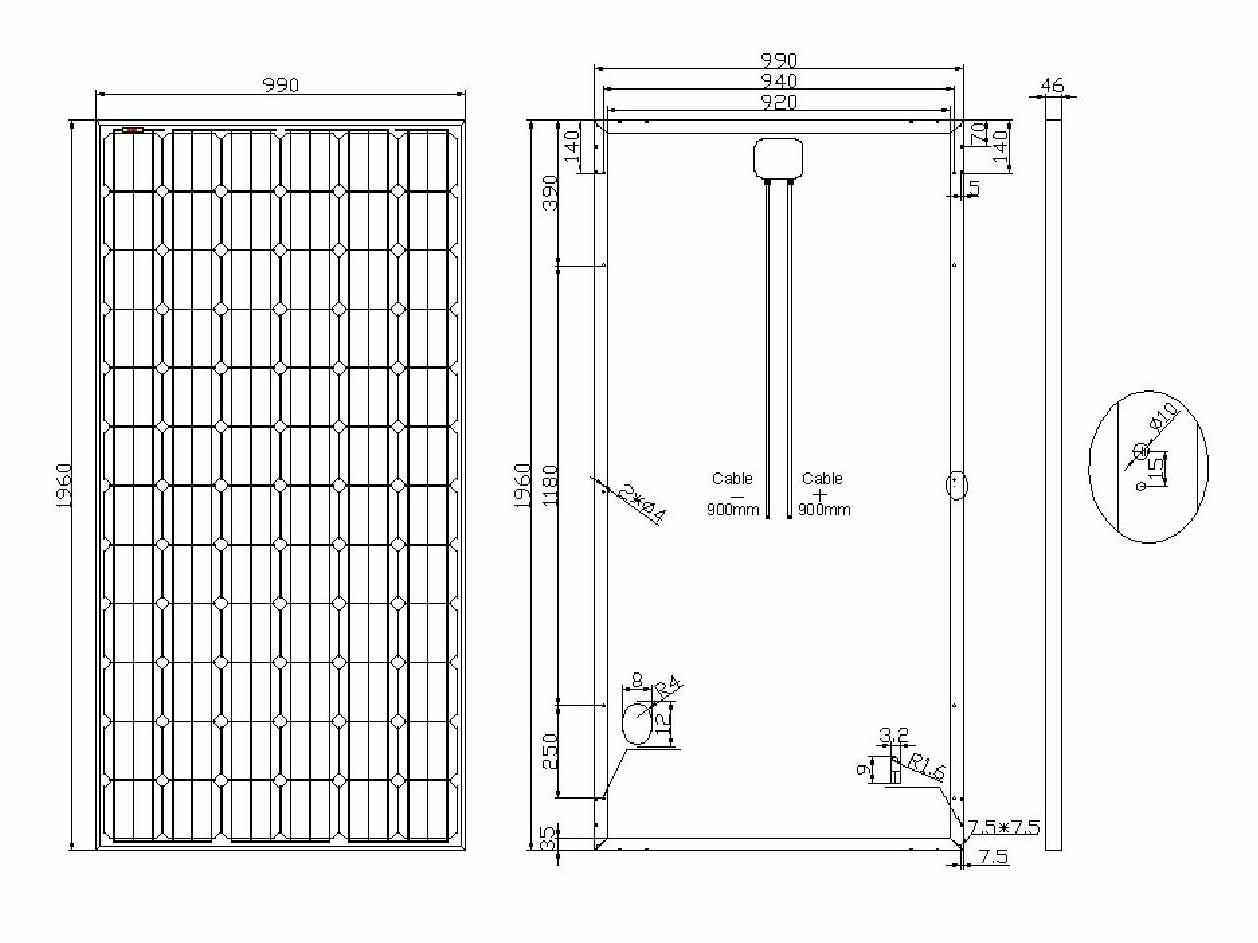

組件尺寸 Size of Module(mm) |
1960*990 | |
|
玻璃厚度 Front Glass Thikness(mm) |
3.2 | |
|
表面載荷能力 Surface Maximum Load Capacity |
2400-5400Pa |
|
|
抗冰雹能力 Allowable Hail Load |
23m/s ,7.53g |
|
|
組件重量 Weight Per Piece(KG) |
22.16 | |
|
接線盒類型 Junction Box Type |
Pass the TUV or CE Certificate |
|
|
二極管電流 Bypass Diode Rating(A) |
12 or None |
|
|
電纜及連接器類型 Cable & Connector Type |
Pass the TUV or CE Certificate |
|
|

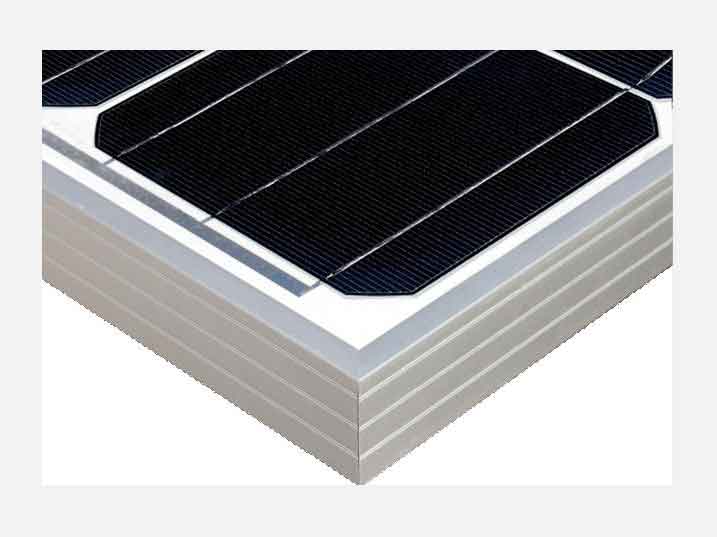

組件邊框 Frame(Material Corners,etc.) |
40# / 35# |
|
|
背板類型 Backing (Brand Type) |
TPT , PET or KPF | |
|
溫度范圍 Temperature Range |
-40°C to +85°C |
|
|
測試條件 Standard Test Conditions |
AM1.5 1000W/㎡ 25°C |
Dear friend,the above parameters only for reference, if you want to know more detail about solar module, please call 18901681653 (wechat) or send email to 9513131@qq.com, thank you very much.
We produce 10W/20W/30W/50W/60W/70W/80W/90W/100W/120W/150W/180W/200W .etc small solar module.
We provide product according to customer requirement.
